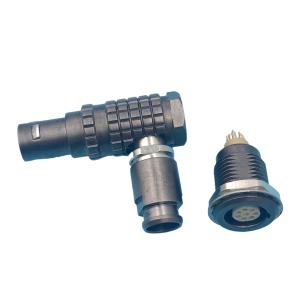

Straight Self Latching Male Female Wire Connectors 3 pin Push Pull
Elbow Push Pull Self Latching Connectors In Straight Male To Elbow Female Plug
KNX expert in making high quality push pull connector and cable assemble,
have excellent team offering connector’s solution for your application.
Main Features
| 1. Push pull locking metal connector, cable to cable connector, free socket, inline connector |
| 2. Safe push-pull (plug-in) self-locking system. |
| 3. Welding and printed circuit board pin cores (straight and bent). |
| 4. It is convenient for high-density installation and saves space. |
| 5. Various multi-core types can be produced, and can be specially customized according to customer requirements |
| 6.Various key positions’ different positioning selection can prevent mixed insertion between similar connectors. |
| 7. 360 degree shielding provides comprehensive EMC protection. |
| 8. Simple operation,automatic locking , safety insulation and strong anti-interference. |
Technical parameter
| Series | Cable outer diameter range(mm) | Pin Number | INGRESS PROTE CTION | Temperature range |
| cable clamp | cable clamp with bend relief |
| Min | Max | Min | Max |
| 00 | 1.1 | 3.4 | 1.1 | 3.4 | 2,3,4pin | | |
| 0B | 1.5 | 5.5 | 1.5 | 5.0 | 2,3,4,5,6,7,9 pin | IP50 | -55°C~250°C |
| 1B | 2.2 | 7.5 | 2.2 | 7.0 | 2, 3, 4, 5, 6, 7,8,10,14,16pin |
| 2B | 1.5 | 9.7 | 1.5 | 9.0 | 2, 3, 4, 5, 6, 7,8,10,12,14,16, 18,19pin |
| 3B | 4.1 | 11.7 | 4.1 | 11.0 | 2, 3, 4, 5, 6, 7,8,10,12,14,16, 18, 20,22,24,26,30 pin |
| 0K | 1.0 | 5.0 | 1.0 | 5.0 | 2,3,4,5,6,7,9 pin | IP66-IP68 | -55°C~200°C |
| 1K | 1.3 | 8.5 | 1.3 | 8.5 | 2, 3, 4, 5, 6, 7,8,10,14,16pin |
| 2K | 1.3 | 10.5 | 1.3 | 10.5 | 2, 3, 4, 5, 6, 7,8,10,12,14,16, 18,19pin |
| 3K | 2.6 | 15.0 | 2.6 | 15.0 | 2, 3, 4, 5, 6, 7,8,10,12,14,16, 18, 20,22,24,26,30 pin
|
Mechanical Details
| Mechanical Details |
| Shell Style | Straight plug, with cable collet |
| Key | 1 key(alpha=0°；plug: male contacts,
receptacle:female contacts) |
| Housing material | Brass Cr plated |
| Housing color | Grey-White |
| Cable OD max | Φ5.0mm |
| Jacket | Grey, black |
| Endurance | 5000 mating cycles |
| Operation temp.(min) | -20℃ |
| Operation temp.(max) | 120℃ |
| Humidity(max) | <=95%(at 60℃/140F) |
Application
1. Medical Equipment such as patient monitors and other medical device.
2. Electric vehicles.
3. Measurement devices .
4. Industrial electronic products.
5. Military products.
KNX Service and Warranty
1. Low MOQ: It can meet your business very well.
2. Good services: We treat you as our friends.
3. With a wide range of products( metal conenctor and plastic connectors and cable assemblies): can better meet your requirments .
4. Cheap price: The products are directly from our factory. So it saves a lot secondary cost.
5.OEM accepted: Please send us your design and other important information. OEM are always welcome.
E FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM service.
Q: What’s your delivery time ?
A: sample for 3-5 working days, mass production for 5-20 working days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: Can we visit your factory?
A: Of course yes, we will prepare for everything in advance if it is necessary.Generally, It is requirement that
customers must have build agency relationship or business relationship with our company.
Q: What is your terms of delivery?
A:We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most
convenient or cost effective for you.
